LMC SD-2L-V2 Laboratory Spray Dryer
The LMC SD-2L-V2 is a versatile and highly customizable laboratory spray dryer. It is suitable for laboratory scale production of powdered products ranging from food powders such as coffee to industrial powders such as pigments and detergents. Its modular design enables rapid adaptation to meet specific user requirements. Quick-release sanitary connections ensure fast, tool-free assembly and disassembly. The spray dryer’s body, vessels and piping are SUS304 stainless. All weld seams are tungsten inert gas (TIG) welded and passivated for enhanced corrosion resistance. The NanoMan™ coating, which is invisible, UV stable, chemically resistant, and certified food-safe nano-coat, is offered as an optional feature for the cyclone and drying chamber.

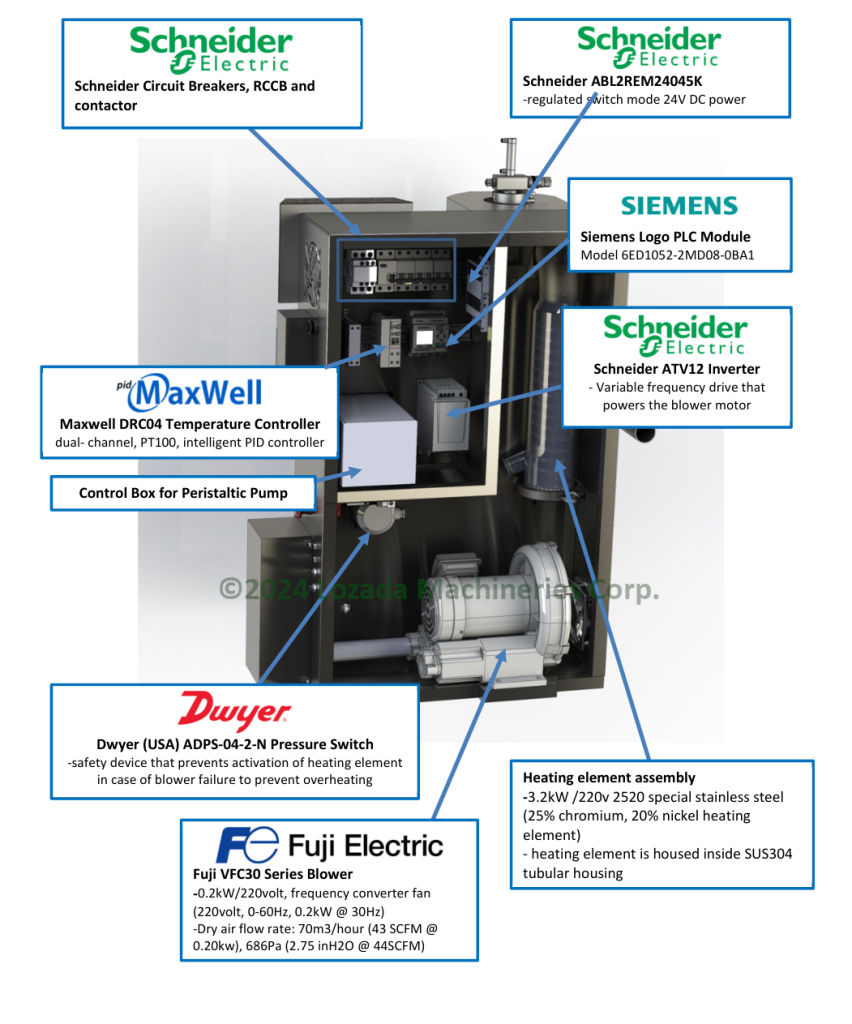

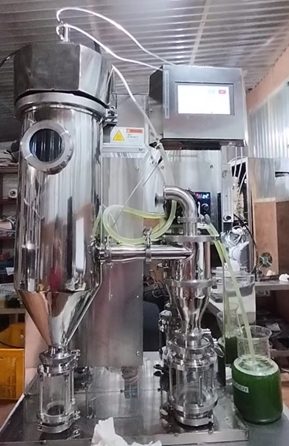

The LMC SD-2L-V2 is capable of both classical and encapsulation spray drying. It features a 7″ touchscreen for parameter setting and data logging. This machine is equipped with name-brand parts such as Dwyer flowmeter, Siemens PLC (process controller), Schneider inverter (motor controller), Fuji Electric blower and Schneider circuit breakers.
Quick Specs
Spray drying process: classical (non-encapsulated) and encapsulation spray drying
Sample feed rate: 0.1-30.0mL per hour using 2.4mm internal diameter peristaltic pump hose (up to 200mL/hour using 4.8mm diameter hose)
Inlet air temperature: 30-220°C ± 3°C
Maximum Flow rate (drying air): 35 m3/h (capable of boost of up to 70m3/h)
Maximum Pressure Spray Gas: ≥ 7.0 bar (100psi)
Heating Control: ± 3°C (using intelligent PID temperature controller)
Spray gas range: 80 – 1800 L/ h (equivalent to 1-30LPM gas per minute; flow rate can be controlled by flowmeter)
Maximum sample throughput: ≥1 L/h
Minimum Sample Size: ≥ 5 g
Particle size range: 1 – 60 um (adjustable by setting gas flow rate and/or pressure)
Particle size distribution: medium
Particle yield: up to 70%
Cyclone Collector: Coated cyclone chamber (coated with NanoMan™ Invisible, UV stable, chemical resistant and Certified food safe; prevents powder from sticking to cyclone chamber walls)
Power supply: 220 volts AC, 50 to 60Hz, single phase
Spray drying gas: Nitrogen, compressed air (50-liter nitrogen tank, 1HP air compressor and pressure regulators are included in the package)
Outlet and Inlet Filters: included in the package

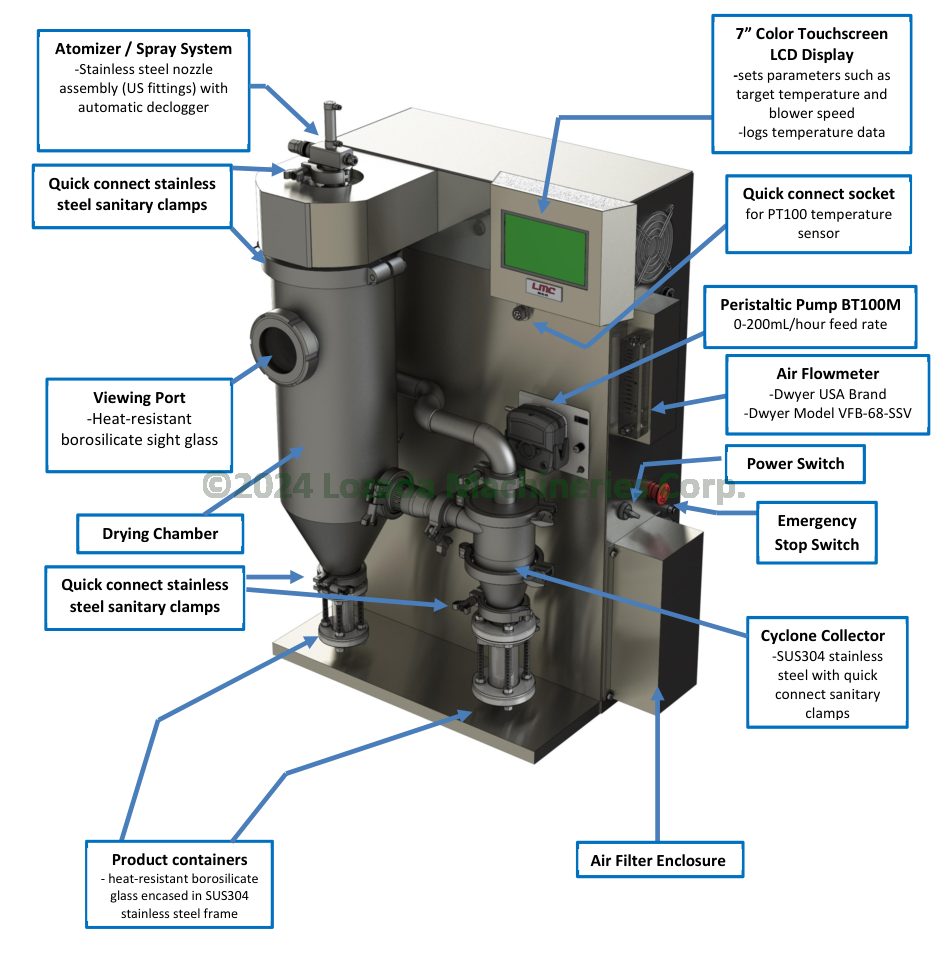

Spray system: stainless steel nozzle with optional ruby stone tip(the ruby orifice increases nozzle wear resistance)
Spray system details: 0.7mm orifice diameter, two-fluid nozzle, US-made fittings
Sample Viscosity (maximum): 300 cps

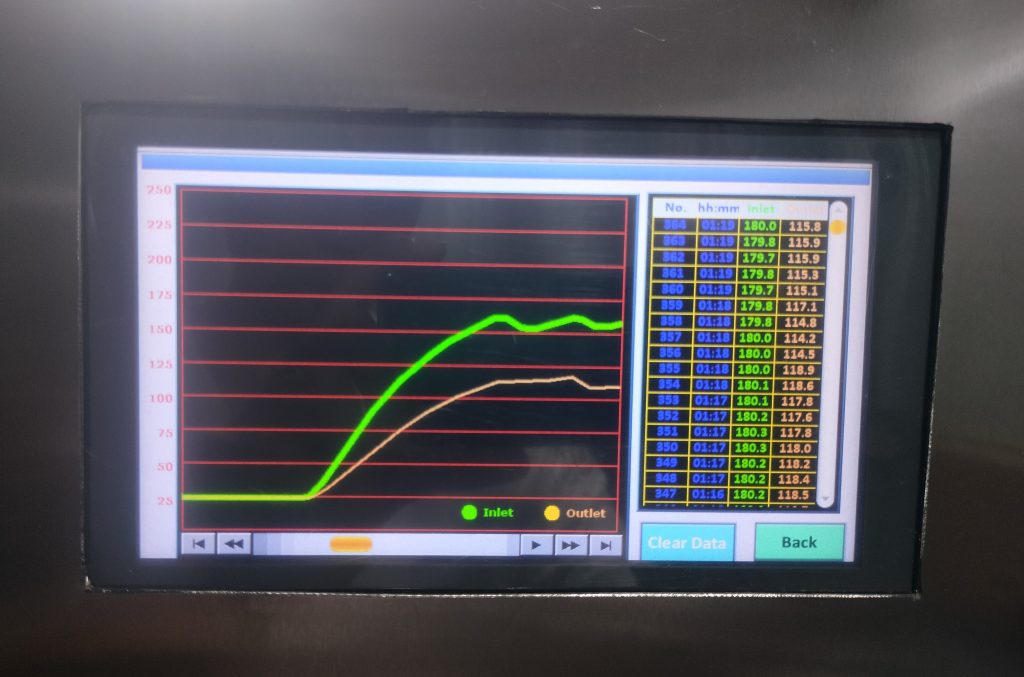

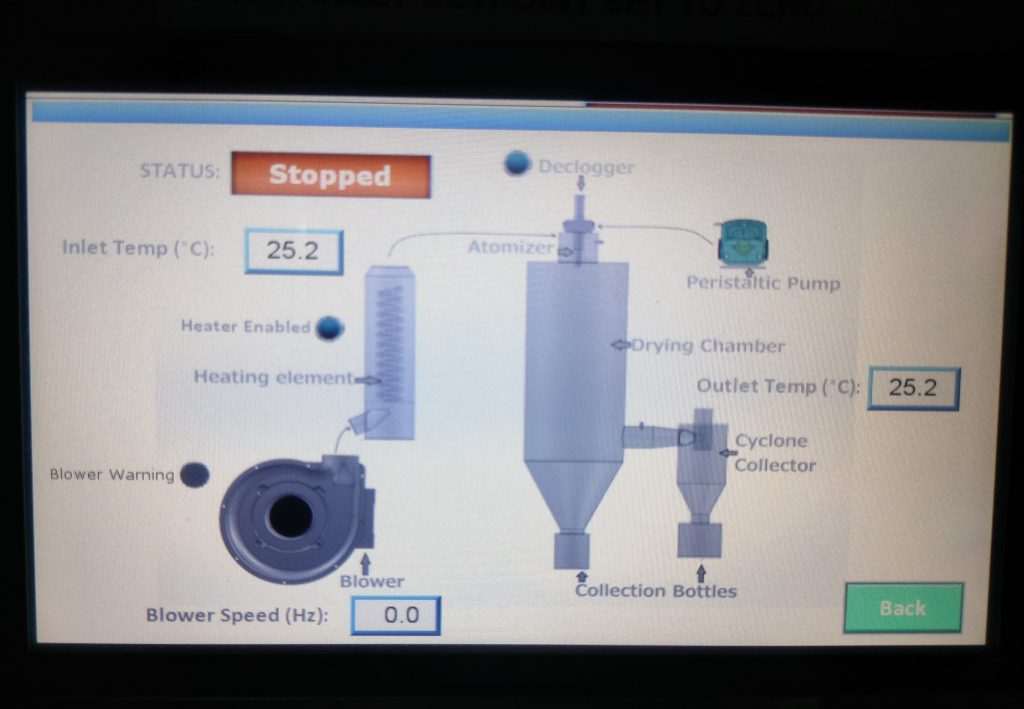

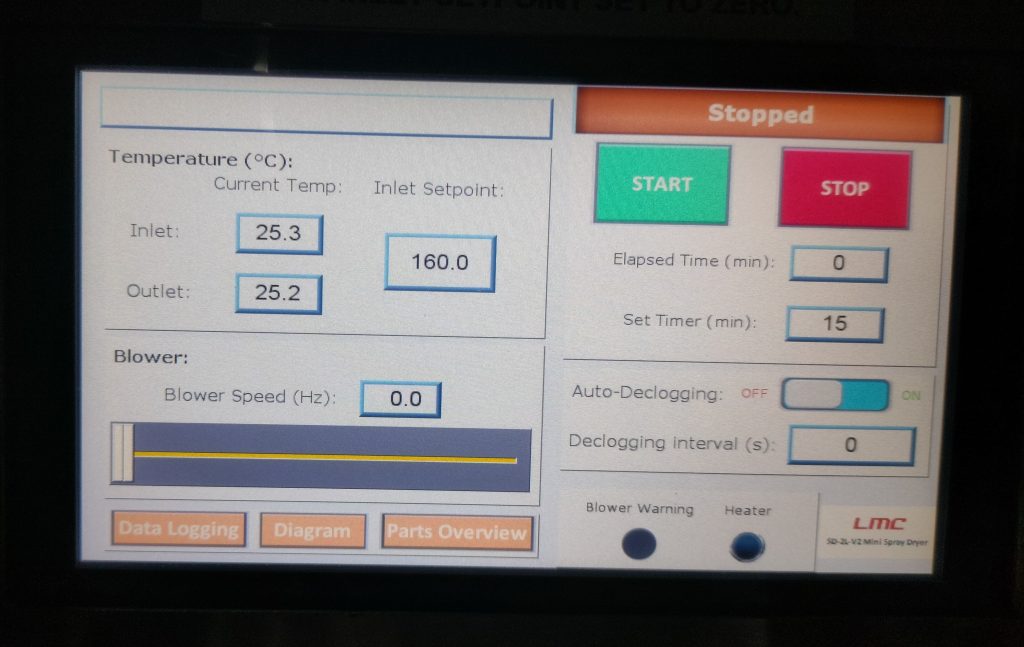

Touchscreen User Interface: 7″ touchscreen for parameter setting and data logging
Peristaltic Pump: 2 pieces included (one for sample and one for solvent)
Temperature sensor: two PT-100 temperature sensors, intelligent PID control (one sensor for inlet temperature and one for product temperature)
Process Automation: with automated mode or method programming (the sequence of operation of the dual peristaltic pumps, atomizer solenoids and temperature set points can be programmed)
Flowmeter: Dwyer brand (0-30LPM) with NIST calibration certificate
Blower: 0.2kW/220volt, frequency converter fan (220volt, 0-60Hz, 0.2kW @ 30Hz)
Electric heater: 3.2kW /220v 2520 special stainless steel (25% chromium, 20% nickel heating element)
Average drying time: 1.0 to 1.5s
Automatic block discharging device: 0-60 seconds adjustable (set using HMI touchscreen, pneumatically actuated)
Control system: Siemens PLC
Electric standard: Schneider

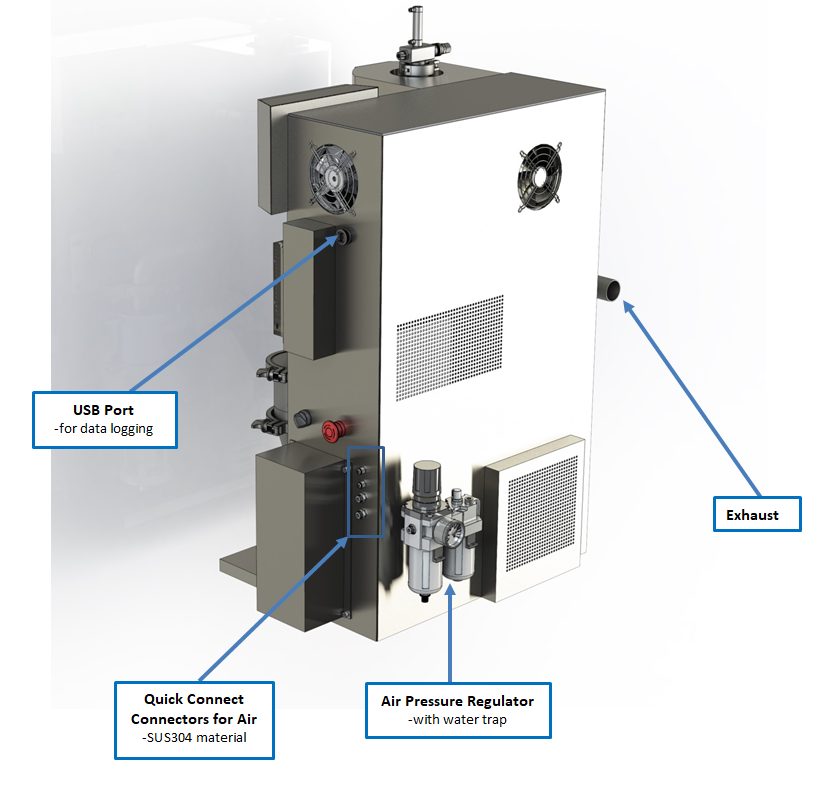

Quick release: temperature meter (aviation-plug quick release), air piping (SS304 push release), and power supply (Schneider weatherproof industrial plug)
Dimensions (frame): 910mm x 575mm x 423mm
Weight: approximately 50kg
